Rehabilitation of 2.7km of sewer pipeline, originally constructed in 1916. The Gardiners Creek Main (GCM) alignment runs adjacent to Gardiners Creek from Warrigal Road, Ashwood to the Monash Freeway, Glen Iris. The GCM sewer transfers flows from Eastern Melbourne suburbs and conveys them to the South Yarra Main (SYM).
Scope of Work
- Clean and CCTV of existing sewers to verify existing condition and dimensions.
- Removal of ladders, step irons, internal droppers landings and penstocks, where required for the lining process.
- Modifying manhole bench and base to fit equipment suitable to rehabilitation process.
- 0.7km, 5 lines (maintenance hole to maintenance hole) of 1050 x 750 single skin brick ovoid sewer by CIPP UV method.
- 2km, 17 lines of 600-750 circular concrete sewer by mix of CIPP UV method and spiral line method.
- Flow management of live sewer to ensure continued operation and no loss of service.
Innovation & Complexity
Looking for innovative ways to remove reinforced concrete and steel structures such as landings and penstocks from manholes:
- safety of workers
- minimizing time spent in confined space
- working with high pressure water for cutting
- avoiding working under loads
- safety of existing structure
- maintaining operation of live sewer system
In situ rehabilitation, avoiding excavation of maintenance hole and sewer, which are up to 9m deep and in built up urban environments.
CIPP UV method requires zero flow which means complex flow control via above ground bypass systems.
Project Outcomes
Safety
Aiming to minimize personnel time spent in confined spaces.
Encouraging continuous safety improvement to create an inherent safety culture.
Clear traffic management around work sites, ensuring safety of pedestrians and cyclists.
Quality
Design to ensure minimum 50 year life of existing asset
Minimise excavation by in situ relining technologies
Reinstatement in accordance with local council standards.
Environmental
Protect native vegetation and trees from construction impacts.
Reduce, reuse or recycle our waste materials to avoid landfill.
Complex flow management to avoid sewer spills and contamination of the creek.
Community
Create successful working relationships with City of Boroondara, City of Stonington and City of Monash and also VicRoads, Yarra Trams and PTV bus services.
Engage local community groups Friends of Gardiners Creek, Back2Nettleton and Kooyongkoot Alliance for vegetation protection and replanting.
Key Staff Involved
Matt Lyon
Project Manager
Nafis Khan
Project Engineer
Louie Naldrett
Senior Project Engineer
Gastavo Flores
Project Engineer
Lupe Tafolo
Supervisor
Mariah Vasiliadis
Project Engineer
Dave Plunkett
HSEQ
Jenny Hiller
Community Engagement
Y10248
Check Out More Of Our Projects
-
In ProgressMaribyrnong Main Sewer Augmentation
A new 1.2km gravity sewer will be built to divert sewage flows from the Maribyrnong River Main (MRM) sewer which transports wastewater to the Western Treatment Plant.
Read More -
In ProgressETP HV-LV Renewals & HV-62A Switchboard
Construction of new high voltage redundancy for current electrical assets and renewal of existing assets for ongoing operations at the Eastern Sewerage Treatment plant.
Read More -

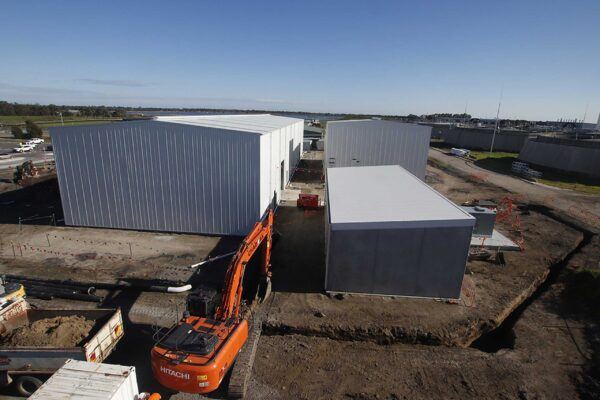

In ProgressETP Recuperative Thickener
